Lewis Structures and Molecular Geometry

Welcome to your study guide on Lewis dot structures, molecular geometry, and the octet rule! These foundational concepts are crucial in understanding chemical bonding and the three-dimensional shapes of molecules.

---

🖼️ Lewis Dot Structures

Lewis dot structures visually represent the valence electrons of atoms within a molecule which play a key role in chemical bonding. These structures are an efficient way to display the valence electrons of an atom. Each dot represents a valence electron while long lines between two atoms are bonding electrons.

🎯 Valence Electrons

What are valence electrons? They’re the electrons located in an atom’s outermost shell, therefore making them the electrons located farthest from the nucleus.

Lewis dot structures represent valence electrons as dots around the chemical symbol of an element. Take a look at a few in the image below!

An image showing valence electrons as dots around elemental symbols.

Image courtesy of eCampusOntario

✏️ Drawing Lewis Structures

Here are some steps you can follow to draw a Lewis structure:

1. Determine the Total Number of Valence Electrons: For neutral molecules, add up valence electrons from each atom. For ions, add or remove electrons according to charge.
2. Choose a Central Atom: Usually the least electronegative atom, except hydrogen which is never central.
3. Draw Skeletal Structure: Connect atoms with single bonds initially.
4. Distribute Remaining Electrons as Lone Pairs: Firstly to outer atoms until they achieve octets, then to central atom.
5. Rearrange into Double/Triple Bonds if Necessary: If there are not enough electrons for central atom to achieve an octet.

Image needed: Step-by-step diagrams of drawing Lewis structures for water (H₂O) and carbon dioxide (CO₂).

Advanced Topics:

• Resonance Structures: Some molecules can be represented by two or more valid Lewis structures called resonance forms.
• Formal Charge Calculation: Helps determine the most stable Lewis structure among possible variants.

---

🎱 The Octet Rule

The octet rule states that atoms tend to form compounds in ways that give them eight valence electrons (an "octet"), resulting in increased stability.

Historical Development

• Introduced by Gilbert N. Lewis in 1916 based on observing chemical compound formation patterns.

Exceptions to the Octet Rule

1. Incomplete Octets: Some elements like hydrogen (H), lithium (Li), beryllium (Be), and boron (B) can be stable with fewer than eight electrons. e.g., boron trifluoride (BF₃).
2. Expanded Octets: Elements in period 3 or higher can have more than eight valence electrons due to available d orbitals e.g., sulfur hexafluoride (SF₆).
3. Odd-Electron Molecules: Molecules with an odd number of total valence electrons cannot distribute those electrons to give all atoms an octet e.g., nitric oxide (NO).

Sulfur hexafluoride lewis dot structure.

Image Courtesy of Chemistry Learner

---

🔶 Molecular Geometry

Understanding molecular geometry is critical as it influences physical properties like melting points and boiling points as well as reactivity.

VSEPR Theory

Valence Shell Electron Pair Repulsion (VSEPR) theory predicts molecular shapes based on repulsions between electron pairs around a central atom.

1. Count electron domains around the central atom including both bond pairs and lone pairs.
2. Use VSEPR shape predictions based on electron domain counts – linear, trigonal planar, tetrahedral etc.

Image needed: VSEPR geometric shapes illustrating electron pair arrangements for different domain counts – AX₂E₀ would be linear while AX₄E₀ would be tetrahedral etc.

Molecular Geometry Types

Key geometries include:

• Linear: 180° bond angles
• Trigonal Planar: 120° bond angles
• Tetrahedral: ≈109.5° bond angles
• Trigonal Bipyramidal: 90° & 120° bond angles
• Octahedral: 90° bond angles

Less common geometries:

• Seesaw
• T-shaped
• Square Pyramidal

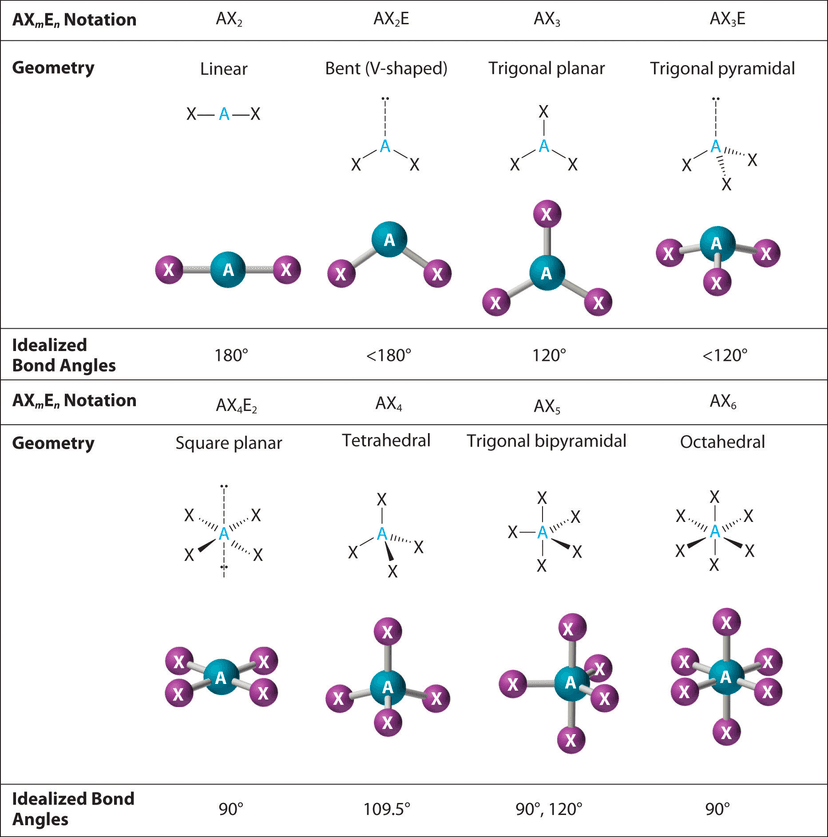

Diagrams showing examples of each geometry type with specified bond angles.

Image Courtesy of 2012Books

---

Relationship Between Molecular Shape and Properties

Molecular shape plays a significant role in determining polarity which affects intermolecular forces like dipole-dipole interactions or London dispersion forces directly impacting substance's state at room temperature i.e., solid liquid gas reactivity mechanism reactions biological functions such DNA protein folding enzymes catalytic activity etcetera

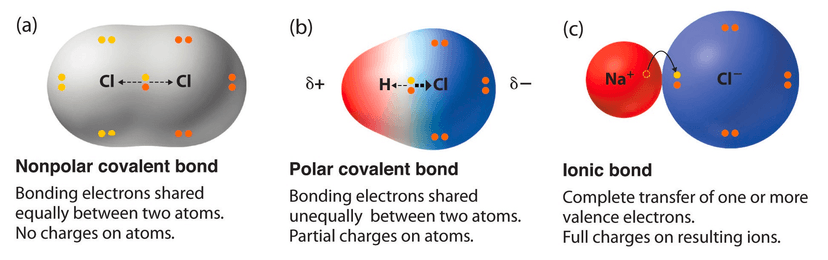

Visual comparison of polar versus nonpolar molecules.

Image Courtesy of LibreTexts

---

Advanced Applications

Further explore these concepts through:

• Resonance Structures Criteria significance drawing
• Hybridization Theory sp sp² sp³ sp³d sp³d² hybrid orbitals shaping
• Molecular Orbital Theory alternative explaining bonding
• Limitations Complex Transition Metal Compounds

---

Guided Practice Questions

Now let’s apply what we’ve learned!

1. Draw complete lewis structure methanol CH₃OH considering all steps discussed above What happens when there isn't enough achieve full Make sure account lone pairs vs bonding representation

Explanation:

Step 1: Count the total number of valence electrons

Carbon has 4 electrons

Hydrogen has 1 electron. However, there are 3 hydrogen atoms in methanol, so there will be 3 valence electrons.

Oxygen has 6 electrons.

So, 4C + 3H+ 6O = 13 Valence Electrons in methanol.

Step 2: Find the central atom

Carbon is the central atom.

Step 3: Connect the atoms:

Carbon atom will be in the center with hydrogen and oxygen atoms connected to carbon with a single bond.

H | H-C-O-H

Step 4: Distribute remaining electrons:

Subtract the number of electrons used in bonds from the valence electrons.

So, 13-2= 11 valence electrons

Remember that hydrogen can only fill two electrons on its outer shell!

H | H-C-O-H |

Step 5: Check for octets and formal charges.

Oxygen and carbon have a full octet. It is important to check for formal charges so we can redistribute the valence electrons. In methanol, however, there are no formal charges as the structure is already stable.

Final structure:

H | H-C-O-H |

2 Explain why PF₅ phosphorus pentafluoride does not follow traditional rules. Discuss implications for structure properties molecule.

Explanation: Phosphorus has ten valence electrons, so the element has an extended octet. In addition, the molecular structure for this substance is trigonal bipyramidal.

f F \ /

F- P - F

 |

F

The implications for properties are:

1. Polarity: PF₅ is a polar molecule due to the presence of the highly electronegative fluorine atoms. The asymmetrical arrangement of fluorine atoms results in a net dipole moment.
2. Reactivity: The presence of an expanded octet in PF₅ allows it to participate in reactions that involve the donation or acceptance of electron pairs. Thus making PF₅ a versatile molecule.
3. Hybridization: The phosphorus atom in PF₅ undergoes sp³d hybridization to form five equivalent orbitals, which is necessary to accommodate the expanded octet.
4. Steric Number: The steric number (the sum of the number of atoms bonded to the central atom and the number of lone pairs on the central atom) in PF₅ is 5, consistent with its trigonal bipyramidal geometry.

Wrapping Up Lewis Structures and Molecular Geometry

Although it takes some practice, Lewis structures and molecular geometry are an efficient way to figure the bonds and electron configurations for each compound. Molecular geometry also allows you to understand the 3D shape of compounds. Both lessons allow you master the concept of electron configuration and different types of bonds for each compound. Happy studying, and enjoy drawing dot structures to your next lesson!
