Welcome, bright minds! 🌟 Today, we'll be diving into the very foundation of chemistry—the atom. Understanding an atom's structure is like getting to know the characters in a book; they're essential to the story. Let's break down everything you need to know about subatomic particles and how they make up everything in our world.

🔍 Subatomic Particles and Their Roles

Atoms are made up of three main types of particles: protons, neutrons, and electrons. Each one plays a unique role:

Protons (p⁺)

• Positively charged
• Found in the nucleus
• Determine the atomic number (Z)
  • This is crucial because it determines what element we're looking at!
• For example, if an atom has 1 proton, it's hydrogen, but 6 protons would make it carbon

Neutrons (n⁰)

• Have no charge (neutral)
• Also located in the nucleus alongside protons
• Affect the mass number (A) which is the sum of protons and neutrons.
  • Differences in neutrons create isotopes
  • For example, $\text{O}^{16}$ is an oxygen with 8 protons and 8 neutrons, whereas $\text{O}^{18}$ has 8 protons and 10 neutrons
• Help stabilize the nucleus—too many or too few can lead to radioactivity.

Electrons (e⁻)

• Negatively charged
• Move around the nucleus in regions called electron shells or clouds
• Much smaller than protons or neutrons
  • Not counted in the mass of an atom
• Super important for chemical reactions because they participate in bond formations

---

📐 Atomic Structure Arrangement

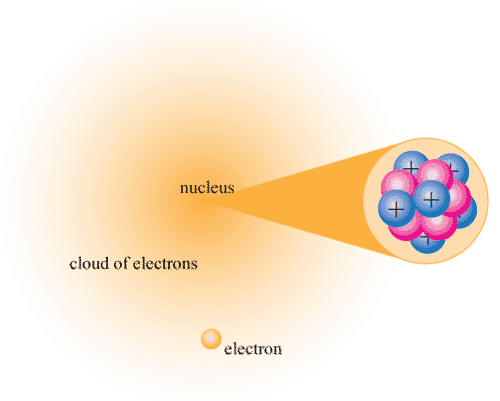

🔆 Nucleus

• The "sun" at the center with both protons and neutrons packed together

Image courtesy of CK-12 Foundation

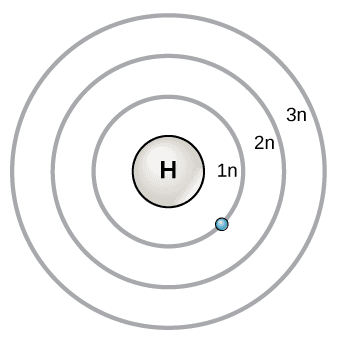

🐚 Electron Shells

• Electrons orbit this "sun" much like planets on fixed paths or regions
• They are organized into shells that can hold a certain number based on 2n² (where n is the shell level)
• This is also known as the Bohr model or planetary model of the atom

Image courtesy of Lumen Learning

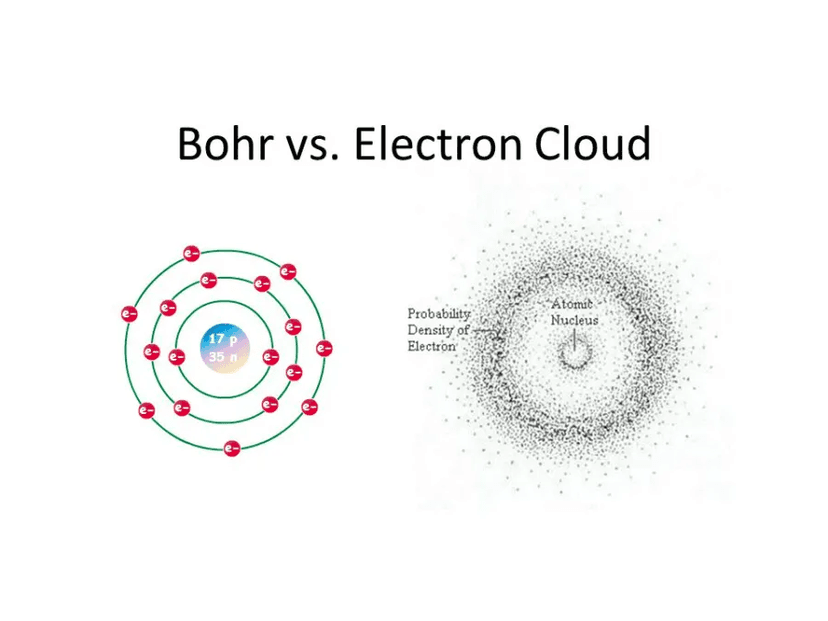

☁️ Quantum Mechanical Model

• This modern model suggests electrons don't have exact paths but probabilities of being found in certain areas called orbitals, instead behaving more like a cloud

Image courtesy of ZME Science

---

🧬 Atomic Number and Mass Number

Every element has its fingerprint known as:

Atomic Number (Z)

• Equal to the number of protons

Mass Number (A)

• Equals protons plus neutrons

These specific configurations help give elements and their isotopes unique properties.

⚖️ Atomic Mass Concepts

🎚️ Atomic Mass

This refers to an atom’s protons plus its neutrons—which may vary from isotope to isotope.

➗ Average Atomic Mass

Since elements exist as mixtures of isotopes naturally, this average takes into account all isotopic forms based on their abundance on Earth—and this is what we see listed on each element's box in the periodic table for their atomic mass.

---

💡 Isotopes: Variations of Elements

Isotopes are simply different versions of an element that have:

• The same number of protons/atomic number
• Different numbers of neutrons/mass numbers

They can be stable or radioactive, depending on their neutron-to-proton ratio. Radioactive isotopes decay over time releasing particles—a process used for dating artifacts!

---

💫 Electron Configuration & Chemical Behavior

The way electrons are arranged around an atom's nucleus affects its properties:

👽 Valence Electrons

• Electrons found in the outermost shell
• These are key players in bonding with other atoms
  • Typically, elements prefer to be in a state where their outer shell is filled—this is where they are most stable
  • Atoms will combine and share electrons so that their outer shells are filled, like the bond between sodium and chlorine to form table salt. Chlorine pulls sodium’s extra two valence electrons towards itself so that they both have full outer shells.

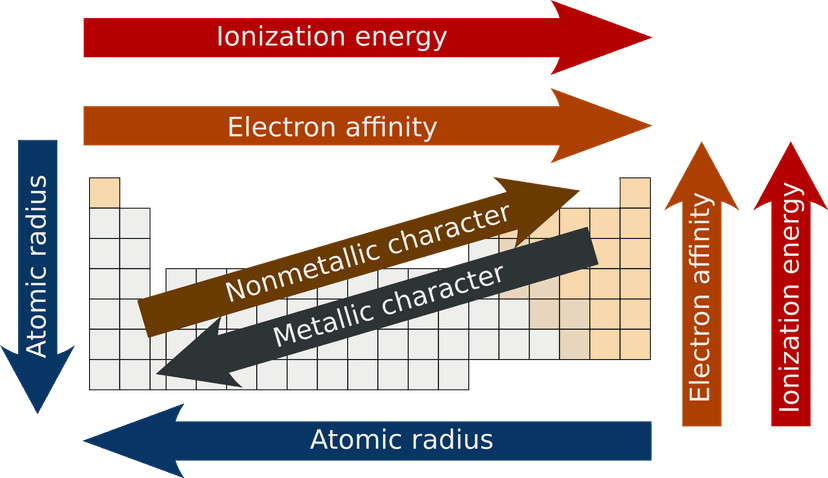

📈 Periodic Trends

Image courtesy of Wikimedia Commons

Electron configuration leads to patterns like

• Electron affinity: The amount of energy released when an additional electron is added to an atom
  • Increases going from left to right and bottom to top of the periodic table
• Atomic radius: Typically refers to the mean distance of the furthest electron from the nucleus
  • Increases going from right to left and top to bottom
• Ionization energy: Refers to the amount of energy it takes to remove one electron from an atom
  • Increases going from left to right and bottom to top of the periodic table
• Metallic character/nonmetallic character: Metallic character is the tendency of an element to lose electrons to form a positive ion (cation). Nonmetallic character is the opposite, referring to the tendency of an element to gain electron to form a negative ion (anion).
  • These move across the table diagonally, in opposite directions
  • Metallic character increases going down and to the left
  • Nonmetallic character increases going up and to the right

---

🔢 Quantum Numbers & Orbital Shapes

These numbers describe where you might find an electron. They come out of the modern quantum mechanical model of the atom.

1. Principal quantum number (n): Indicates energy level/shell.
2. Angular momentum quantum number (l): Shape of orbital (s,p,d,f).
3. Magnetic quantum number (mₗ): Orientation of orbital in space.
4. Spin quantum number (mₛ): Direction of electron spin.

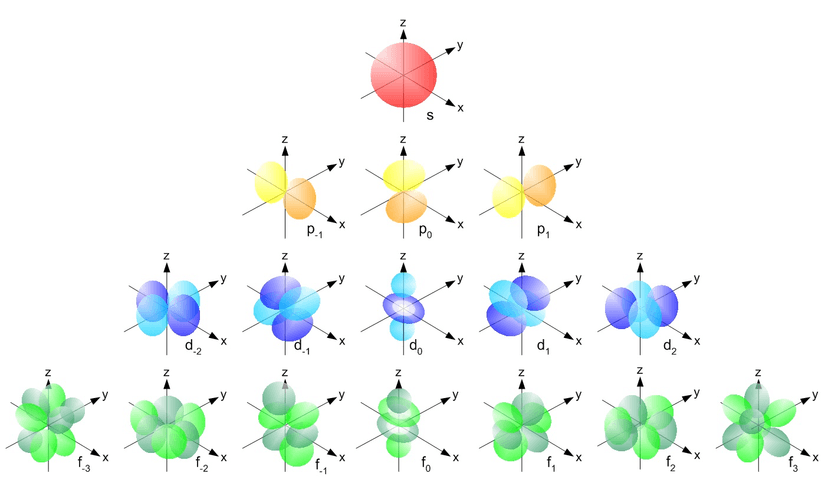

Orbitals come in different shapes—spherical s-orbitals, dumbbell-shaped p-orbitals, etc., which tell us more about how electrons behave within atoms.

Image courtesy of LibreTexts Chemistry

⚖️ Atomic Mass Concepts

Atomic Mass

The mass mostly comes from protons and neutrons since electrons are so light!

Average Atomic Mass

Since elements exist as mixtures of isotopes naturally, this average takes into account all isotopic forms based on their abundance on Earth—this figure is what we see listed on each element's box in the periodic table!

---

📝 Practice Questions

❓Questions

1. What is the atomic number for an element with 13 protons?
2. Calculate the mass number if for an element with 15 neutrons, 12 protons, and 12 electrons.
3. Describe why isotopes have different atomic masses but not different atomic numbers.
4. Sketch out what you think a p-orbital would look like.

📌 Solutions

1. The atomic number, Z, is the same as the number of protons, so it will be 13.
2. Atomic mass is the sum of the neutrons and protons, so $15+12=\boxed{27}$.
3. All isotopes of a specific element have the same number of protons—this is what defines an atom as that element and not something else! But, they have varying numbers of neutrons, which affect the isotope’s atomic mass.

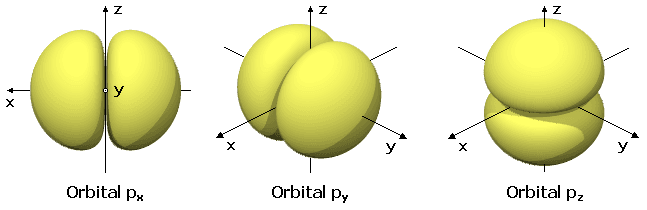

4. A p-orbital looks sort of like an infinity sign, if it were three-dimensional.

Image courtesy of Wikimedia Commons

⚛️ Wrapping Up Atomic Structures

You just learned a lot of information and patterns about the atom! These concepts will keep coming up throughout your course. Remember to keep practicing these concepts—it's how they'll stick! Good luck studying! 🎓
